Open sky when you want it
The blades fold back along their tracks into a compact stack, so the whole space is open to the sky.
Pergola 180 Retractablefrom $5,625
Request a quoteRetractable
Pergola 180 Retractable

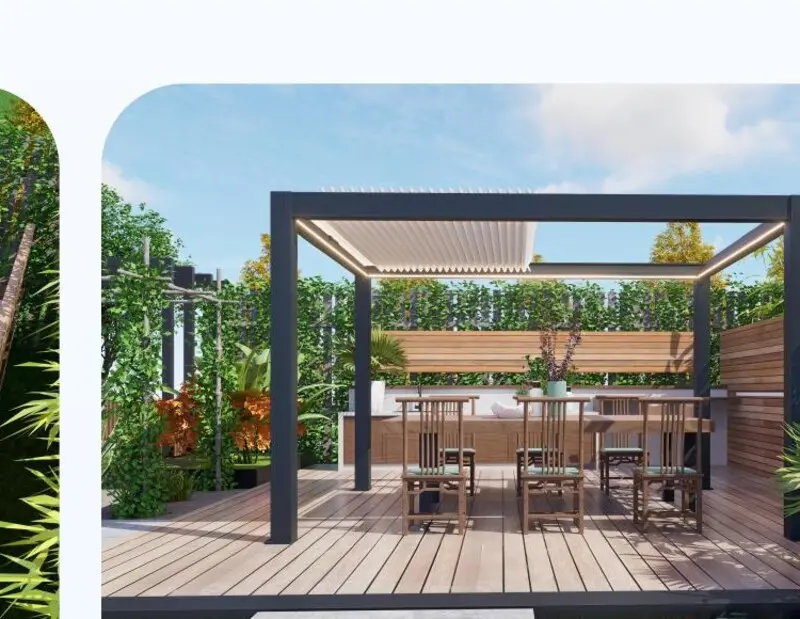

A louvred roof that folds right back at the press of a button, for open sky one minute and a rainproof roof the next.
From $5,625incl. GST
Motorised, with remote control. Made to your size.
- Roof folds open, or stops part way
- Rainproof when closed
- Remote or phone control
- Blades up to 4 m, extends to 8 m
- LED lighting around the beams
- 3-year structural warranty
Made to order for your site: 6 to 8 weeks. Send us your measurements and photos for a quote.
Supply only: delivery is quoted with your pergola, and your builder installs it.
- Spec sheet for your builder
- Reply within 1 business day
Why the 180
Or just part of it

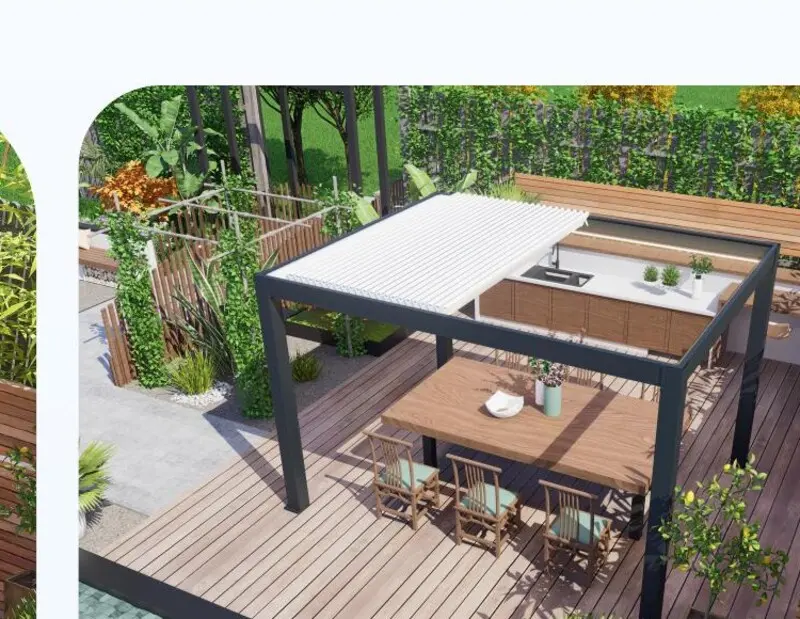

Stop the roof anywhere along its travel to shade the table and leave the rest open.
A real roof when it rains
Closed, the blades lie flat and seal into a rainproof roof.
Quiet belt drive
A polyurethane belt with 14 steel wires inside moves the roof: strong, steady and quiet.
Drainage you do not see
Rain runs from the blades into the gutter and down inside the posts.
Close it in
Add glass doors or windproof roller blinds to use it in any weather. Quoted separately.
Watch it open
A 180 opening and closing by remote, with the LED lighting on. Shown at 1.5× speed.
Supplied for your builder
- Supplied as a kit for your builder or installer to put up.
- The spec sheet gives them the profiles, sizes and drainage detail.
- Send us your measurements and a few photos of the space; we reply with a written quote.
- If your site needs a building permit, you or your builder arrange it.
Specifications
| Roof | |
|---|---|
| Type | Retractable louvred roof, aluminium blades running on tracks |
| Operation | Motorised, by remote control or phone app; stops anywhere along its travel |
| Drive | Synchronous belt, polyurethane with 14 embedded steel wires |
| Rain | Rainproof with the roof closed; hidden drainage through the gutters and posts |
| Lighting | LED strip around the beams |
| Size | |
| Blade length | Up to 4 m |
| Extension | 2708 to 8012 mm, in set steps of 156 mm; extra posts beyond 4580 mm |
| Standard height | 2.7 m |
| Profiles | |
| Blade | 181 x 40 x 1.2 mm |
| Beam | 175 x 40 x 1.8 mm |
| Track beam | 173 x 40 x 1.6 mm |
| Gutter | 82 x 55 x 1.4 mm |
| Post | 150 x 150 x 2.0 mm |
| Frame and ratings | |
| Material | Aluminium alloy, powder coated |
| Colours | Grey, white, brown or black |
| Load | 100 kg/m² (manufacturer's rating) |
| Wind | Beaufort level 10 with the roof closed (manufacturer's rating, not an independent test) |
| Supply | |
| Lead time | Made to order, 6 to 8 weeks |
| Delivery | Freight quoted with your pergola |
| Installation | Supply only - installed by your builder or installer |
| Warranty | 3 years on structural defects in the frame and fixings, from the date of delivery |
Questions, answered
All the way: the blades fold back into a compact stack at one end. You can also stop it anywhere along the way to shade part of the space.
Blades up to 4 m long, and an extension (the direction the roof folds) from 2708 to 8012 mm in set steps of 156 mm. Beyond 4580 mm of extension it needs extra posts. The standard height is 2.7 m. Larger areas are covered by two roofs side by side.
Close the roof and the blades seal flat into a rainproof roof. Water runs into the gutters and down inside the posts, out of sight.
Yes. Windproof roller blinds and glass doors can close it in. They are quoted separately.
No - ASG supplies pergolas only. Your builder or installer puts it up, working from the spec sheet. We answer their questions while they do.
Request a quote with the size you have in mind, whether it stands free or against the house, and a few photos of the space. We reply with a written quote, usually within one business day.
Each pergola is made to order: 6 to 8 weeks from the order to delivery.
As a kit, by freight. Delivery is quoted with your pergola, to anywhere in Australia.
It depends on the size, the height and where it sits on your block. Check with your council or a registered building surveyor before you order. If you need a permit, you or your builder arrange it; the spec sheet has the detail they will ask for.
Structural defects in the frame and fixings are covered for 3 years from the date of delivery. The motor and other electrical parts carry their manufacturers' warranties. Installation is not covered, as ASG does not install.
