Shade or breeze
The blades turn up to 90 degrees: closed for shade and rain, open for light and air.
Pergola 163from $3,750
Request a quoteLouvered
Pergola 163

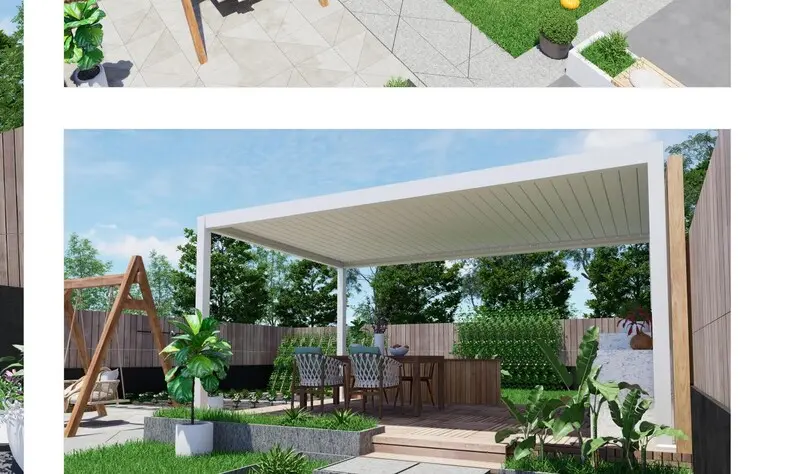

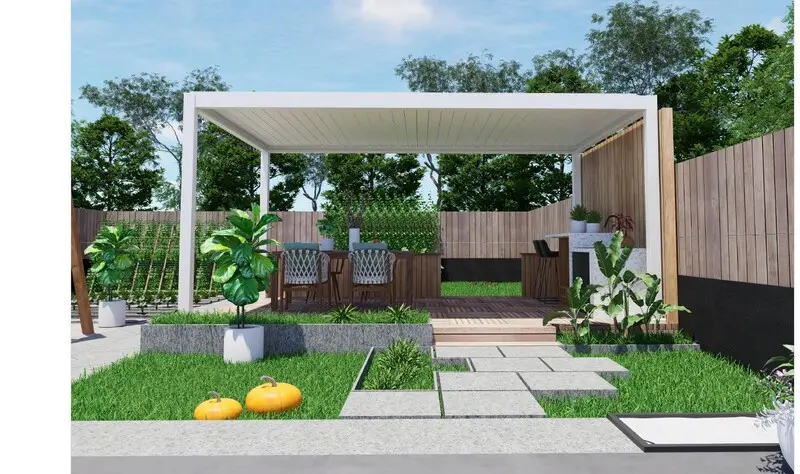

A compact louvred pergola for courtyards, terraces and smaller backyards, in a set range of sizes.
From $3,750incl. GST
Electric or manual. Set sizes from 3 x 3 m to 4 x 4 m.
- Blades turn up to 90 degrees
- Rainproof when closed
- 3 x 3, 3 x 4, 3 x 6 or 4 x 4 m
- Three blade styles
- Colour LED option
- 3-year structural warranty
Made to order for your site: 6 to 8 weeks. Send us your measurements and photos for a quote.
Supply only: delivery is quoted with your pergola, and your builder installs it.
- Spec sheet for your builder
- Reply within 1 business day
Why the 163
Three blade styles
Double-layer flat, double-layer bevelled, or curved single-layer blades - each with its own look.
Colour light option
The flat-blade roof can be made with a colour LED strip built in, so the space works into the evening.
Hidden drainage
Rain runs off the blades into the gutter around the frame and down inside the posts.
Sized for smaller spaces
Made in set sizes from 3 x 3 m to 4 x 4 m. For a size of your own, see the Pergola 175.
See the Pergola 175
Four frame colours
Grey, white, coffee or black, powder coated.
Supplied for your builder
- Supplied as a kit for your builder or installer to put up.
- The spec sheet gives them the profiles, sizes and drainage detail.
- Send us your measurements and a few photos of the space; we reply with a written quote.
- If your site needs a building permit, you or your builder arrange it.
Specifications
| Roof | |
|---|---|
| Type | Louvred aluminium blades, in three styles |
| Blade rotation | Up to 90 degrees |
| Operation | Manual or electric, with an optional colour LED strip |
| Rain | Rainproof with the blades closed; hidden drainage down the posts |
| Sizes | |
| Flat blades (with or without LED) | 3 x 3, 3 x 4, 3 x 6 and 4 x 4 m |
| Bevelled or curved blades | 3 x 2.967, 3 x 4 and 3 x 6 m |
| Height | 2.5 m |
| Other sizes | Not available - see the Pergola 175 |
| Profiles | |
| Beam and gutter | 152 x 90 x 1.5 mm, one profile |
| Double-layer flat blade | 163 x 35.3 x 1.25 mm |
| Double-layer bevelled blade | 163 x 35.3 x 1.25 mm |
| Curved single-layer blade | 163 x 33.3 x 1.1 mm |
| Post | 120 x 120 x 1.4 mm |
| Frame and ratings | |
| Material | 6063 aluminium alloy, high-density powder coat |
| Colours | Grey, white, coffee or black |
| Wind | Beaufort level 10 with the blades closed (manufacturer's rating, not an independent test) |
| Supply | |
| Lead time | Made to order, 6 to 8 weeks |
| Delivery | Freight quoted with your pergola |
| Installation | Supply only - installed by your builder or installer |
| Warranty | 3 years on structural defects in the frame and fixings, from the date of delivery |
Questions, answered
With flat blades: 3 x 3, 3 x 4, 3 x 6 and 4 x 4 m. With bevelled or curved blades: 3 x 2.967, 3 x 4 and 3 x 6 m. All are 2.5 m high. Other sizes are not made - the Pergola 175 is made to your size.
Double-layer flat blades give the cleanest, flattest roof and are the ones that can have the colour LED strip. Bevelled blades have an angled edge; curved single-layer blades have a softer, lighter look.
Either. The electric model turns the blades at the press of a button; the manual model is turned by hand.
No - ASG supplies pergolas only. Your builder or installer puts it up, working from the spec sheet. We answer their questions while they do.
Request a quote with the size you have in mind, whether it stands free or against the house, and a few photos of the space. We reply with a written quote, usually within one business day.
Each pergola is made to order: 6 to 8 weeks from the order to delivery.
As a kit, by freight. Delivery is quoted with your pergola, to anywhere in Australia.
It depends on the size, the height and where it sits on your block. Check with your council or a registered building surveyor before you order. If you need a permit, you or your builder arrange it; the spec sheet has the detail they will ask for.
Structural defects in the frame and fixings are covered for 3 years from the date of delivery. The motor and other electrical parts carry their manufacturers' warranties. Installation is not covered, as ASG does not install.
