Set the light
Turn the blades anywhere up to 90 degrees for full shade, filtered light or a breeze. Electric models move at the press of a button.
Pergola 175from $4,550
Request a quoteLouvered
Pergola 175
Our standard louvred pergola: double-layer blades that turn 90 degrees for shade, light or a rainproof roof, made to your size.
From $4,550incl. GST
Electric or manual. Made to your size.
- Blades turn up to 90 degrees
- Rainproof when closed
- Up to 5 x 4 m in one set
- Electric or manual
- LED lighting option
- 3-year structural warranty
Made to order for your site: 6 to 8 weeks. Send us your measurements and photos for a quote.
Supply only: delivery is quoted with your pergola, and your builder installs it.
- Spec sheet for your builder
- Reply within 1 business day
Why the 175
Closed, it keeps the rain out
The double-layer blades close flat into a continuous roof, each with its own water channel.
Dual drainage
Water runs from the blades into the gutters and down inside the posts, and a second channel stops rain splashing in at the edges.
Bigger by design
One set covers up to 5 x 4 m. Larger areas are covered by joining sets or adding posts.
Lit after dark

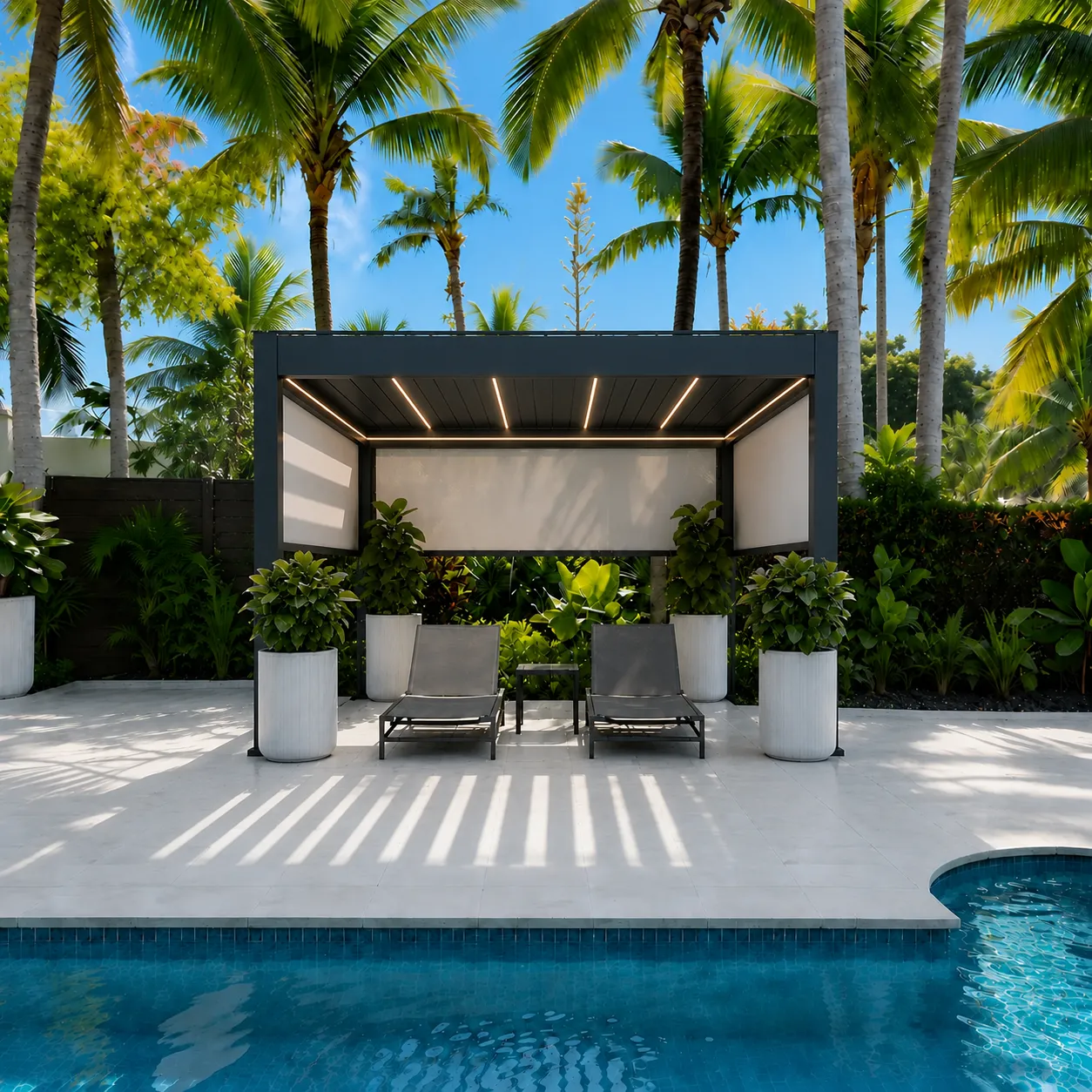

LED strip lighting can be built into the frame so the space works into the evening. Quoted as an option.
Freestanding or on the house
Stand it on four posts, fix one side to a wall, or set it up without posts on a custom frame.
Supplied for your builder
- Supplied as a kit for your builder or installer to put up.
- The spec sheet gives them the profiles, sizes and drainage detail.
- Send us your measurements and a few photos of the space; we reply with a written quote.
- If your site needs a building permit, you or your builder arrange it.
Specifications
| Roof | |
|---|---|
| Type | Louvred, double-layer aluminium blades with built-in water channels |
| Blade rotation | Up to 90 degrees |
| Operation | Electric or manual |
| Rain | Rainproof with the blades closed; dual hidden drainage |
| Lighting | LED strip lighting option |
| Size | |
| Largest single set | 5 x 4 m; larger areas by joining sets |
| Blade length | 2 to 4 m |
| Extension | 2 to 5 m on four posts; to 6.5 m with extra posts |
| Standard height | 2.7 m |
| Profiles | |
| Blade | 175 x 40 x 1.5 mm, double layer |
| Beam | 175 x 40 x 1.6 mm |
| Gutter | 55 x 82 x 1.5 mm, separate from the beam |
| Post | 150 x 150 x 2.0 mm (180 x 180 x 2.2 mm optional) |
| Frame and ratings | |
| Material | 6063 aluminium alloy, high-density powder coat |
| Colours | Dark grey, white, coffee or black |
| Flat load | 100 kg/m² (manufacturer's rating) |
| Wind | Up to 100 km/h with the blades closed (manufacturer's rating, not an independent test) |
| Supply | |
| Lead time | Made to order, 6 to 8 weeks |
| Delivery | Freight quoted with your pergola |
| Installation | Supply only - installed by your builder or installer |
| Warranty | 3 years on structural defects in the frame and fixings, from the date of delivery |
Questions, answered
One set is made with blades 2 to 4 m long and an extension of 2 to 5 m, on four posts; to 6.5 m with extra posts. The standard height is 2.7 m. For a bigger area, sets are joined side by side.
Yes. It can stand free on four posts, have one side fixed to a wall, or sit on a custom frame without posts. Tell us which when you request a quote.
Either. Electric models turn the blades at the press of a button; manual models are turned by hand.

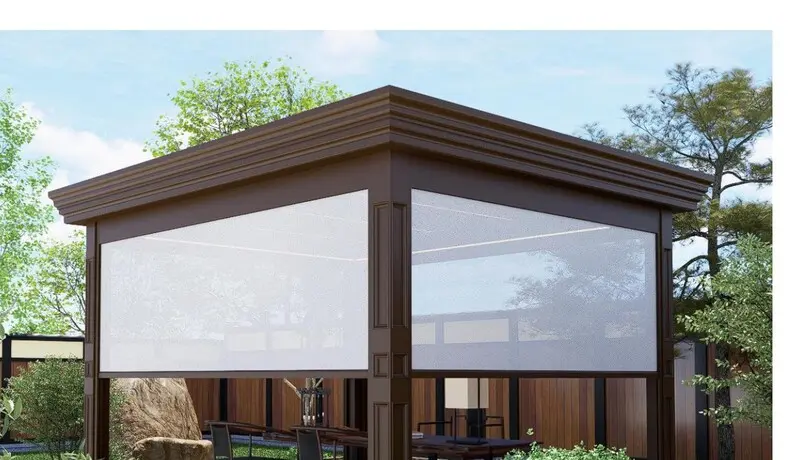

LED lighting, a fan light, post lights, windproof side curtains, glazing, movable shutters, heaters, a rain sensor and smart control. Each is quoted separately.
No - ASG supplies pergolas only. Your builder or installer puts it up, working from the spec sheet. We answer their questions while they do.
Request a quote with the size you have in mind, whether it stands free or against the house, and a few photos of the space. We reply with a written quote, usually within one business day.
Each pergola is made to order: 6 to 8 weeks from the order to delivery.
As a kit, by freight. Delivery is quoted with your pergola, to anywhere in Australia.
It depends on the size, the height and where it sits on your block. Check with your council or a registered building surveyor before you order. If you need a permit, you or your builder arrange it; the spec sheet has the detail they will ask for.
Structural defects in the frame and fixings are covered for 3 years from the date of delivery. The motor and other electrical parts carry their manufacturers' warranties. Installation is not covered, as ASG does not install.
